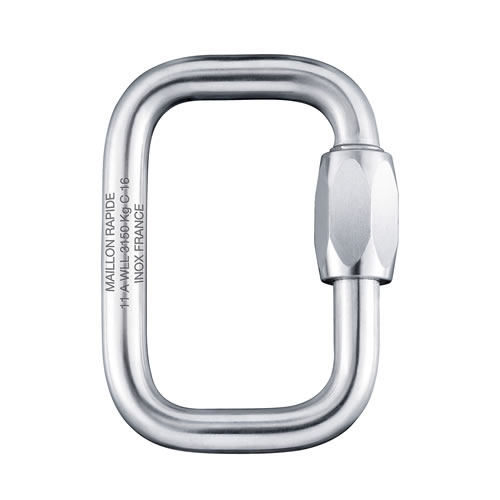

Square Maillon rapide

Square Maillon rapide
Direction of loading Scheme Square Maillon rapide
Material Tightening
torque Recommendation

Application

Product request

Quote:
for quote request, insert quantity in the chart below before clicking on the basket.

Square shape: the finest connector when connecting two flat webbing of same width.

Reference Diameter Dimensions - mm Weight WLL BL Quote
mm inches L.T. L.I.1 L.I.2 H.T. H.I. O E T g kg kg Qty
MRCZ02.5 2.5 3/32" 22 10 17 27 22 3,5 8 3,5 4 25 125
MRCZ03.0 3 7/64" 24 9,5 18 31 25 4 9 4 6 40 200
MRCZ03.5 3.5 1/8" 29 12 22 35 28 5 11 5 11 70 350
MRCZ04.0 4 5/32" 33 13,5 25 40 32 5,5 12,5 6 15 100 500
MRCZ05.0 5 3/16" 38 15 28 50 40 6,5 16 7 26 150 750
MRCZ06.0 6 1/4" 43 16,5 31 57 45 7,5 19 9 43 250 1250
MRCZ07.0 7 9/32" 48 18 34 66 52 8,5 21,5 10 64 400 2000
MRCZ08.0 8 5/16" 53 19,5 37 74 58 10 24 11 87 550 2750
MRCZ09.0 9 3/8" 58 21 40 81 63 11 26 12 129 700 3500
MRCZ10.0 10 7/16" 63 22,5 43 90 70 12 29 13 166 900 4500
MRCZ12.0 12 1/2" 74 26,5 50 105 81 15 33 15 278 1100 5500
MRCZ14.0 14 9/16" 85 30,5 57 121 93 17 38,5 17 440 1800 9000
MRCZ16.0 16 5/8" 96 34,5 64 139 107 19 45 19 614 2200 11000
MRCZ18.0 18 11/16" 107 38,5 71 158 122 23 59 22 875 2600 13000
Reference Diameter Dimensions - mm Weight WLL BL Quote
mm inches L.T. L.I.1 L.I.2 H.T. H.I. O E T g kg kg Qty
MRCI02.5 2.5 3/32" 22 10 17 26 21 3,5 8 3,5 4 70 350
MRCI03.0 3 7/64" 24 9,5 18 31 25 4 9 4 6 110 550
MRCI03.5 3.5 1/8" 29 12 22 36 29 5 11 5 11 150 750
MRCI04.0 4 5/32" 33 13,5 25 41 33 5,5 12,5 6 15 200 1000
MRCI05.0 5 3/16" 38 15 28 50 40 6,5 16 7 27 325 1625
MRCI06.0 6 1/4" 43 16,5 31 57 45 7,5 19 9 44 450 2250
MRCI07.0 7 9/32" 48 18 34 66 52 8,5 21,5 10 66 625 3125
MRCI08.0 8 5/16" 53 19,5 37 76 60 10 24 11 90 770 3850
MRCI09.0 9 3/8" 58 21 40 83 65 11 26 12 132 980 4900
MRCI10.0 10 7/16" 63 22,5 43 92 72 12 29 13 171 1250 6250
MRCI12.0 12 1/2" 74 26,5 50 109 85 15 33 15 285 1750 8750
MRCI14.0 14 9/16" 85 30,5 57 124 96 17 38,5 17 451 2450 12250
MRCI16.0 16 5/8" 96 34,5 64 142 110 19 45 19 700 3150 15750

*WLL: Working load limit
*BL: Breaking load.
