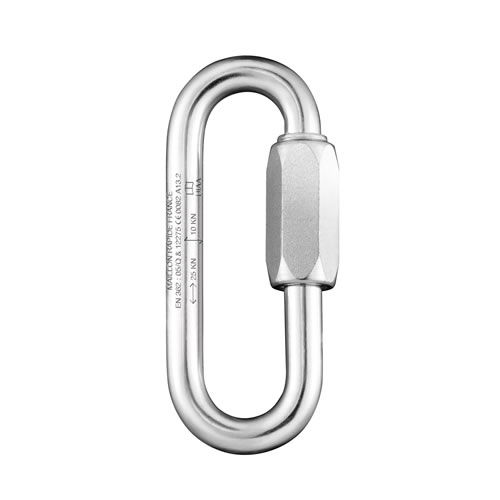

Large opening EN Maillon rapide

Large opening EN Maillon rapide

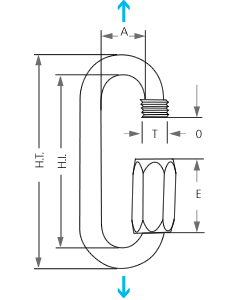

Direction of loading Scheme Large opening EN Maillon rapide
Product request

Quote:
for quote request, insert quantity in the chart below before clicking on the basket.

Large Opening: an alternative to the Standard shape with identical purpose, for easier connection of wider parts.

Reference Diameter Dimensions - mm Weight BL Quote
mm inches H.T. H.I. A O E T g kN Qty
MRGOZ07.0 EN 7 9/32" 79 65 16 16 28 10 60 25 kN
MRGOZ08.0 EN 8 5/16" 88 72 17,5 17,5 31,5 11 91 32 kN
MRGOZ10.0 EN 10 7/16" 105,5 85,5 20,5 20,5 36 13 157 50 kN
Reference Diameter Dimensions - mm Weight BL Quote
mm inches H.T. H.I. A O E T g kN Qty
MRGOI07.0 EN 7 9/32" 79 65 16 16 28 10 62 40 kN

*BL: Breaking load.
