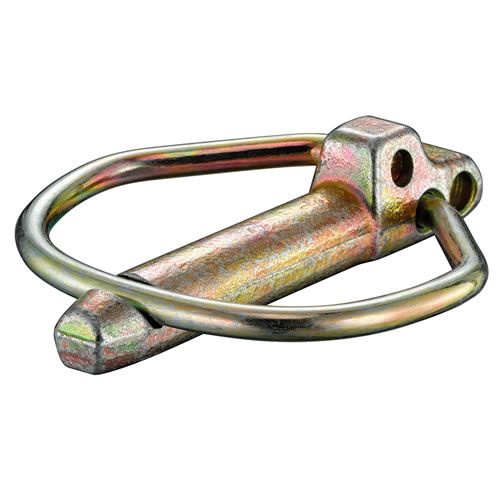

Safety Linchpin

Safety Linchpin
Scheme Safety Linchpin

Application

Product request

Quote:
for quote request, insert quantity in the chart below before clicking on the basket.

Mechanical assembly of axis or drilled tubes for extensive use. To be fitted at the end of axis.

Reference Diameter Dimensions - mm Weight Quote
mm inches D2 D3 D4 B1 B2 B3 A H L1 L2 DIN 11023 g Qty
GCZB07.5 SECU 7.5 19/64" 4 3,6 32 13,5 7,5 50 7,5 7 42 62 8x42 35
GCZB09.5 SECU 9.5 3/8" 4,5 3,6 32 14 8 50 8 11 45 66 10x45 40
GCZB10.5 SECU 10.5 27/64" 4,5 3,6 32 14 8 50 8,5 11 45 66 12x45 47
GCZB11.5C SECU 11.5 29/64" 4,5 3,6 32 14 9 50 9 11 45 66 12x45 50
GCZB11.5L SECU 11.5 29/64" 4,5 4 45 15 9 59 9 8 55 77 12x55 67
GCZB15.5 SECU 15.5 5/8" 6 4 45 17,5 14,5 59 12,5 12 60 80 17x60 123

* Bichromate zinc plated steel available while stocks last
