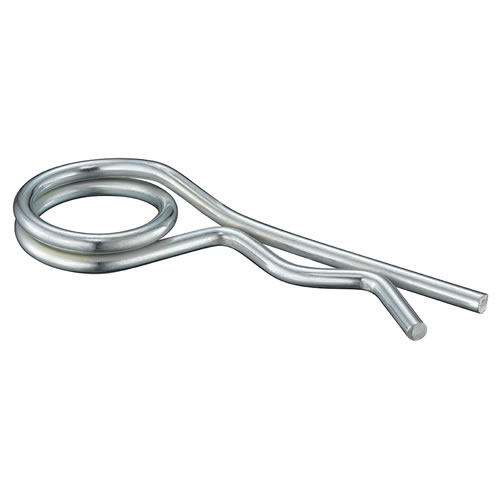

Double Beta Pin

Double Beta Pin

Scheme Double Beta Pin

Application

Product request

Quote:
for quote request, insert quantity in the chart below before clicking on the basket.

Mechanical assembly of drilled parts for extensive use.

White zinc plated steel

Reference	Diameter		Dimensions - mm			Weight	Quote
Reference	mm	inches	L	h	Ø axe	g	Qty
GBDZ03.0	3	7/64"	75	22	10 to 15	12
GBDZ04.0	4	5/32"	90	31	15 to 20	31
GBDZ05.0	5	3/16"	110	36	20 to 25	52
GBDZ06.0	6	1/4"	115	42	25 to 30	80
GBDZ07.0	7	9/32"	170	44	30 to 45	135
GBDZ08.0	8	5/16"	170	46	40 to 50	175
