Products > CE-WLL MAILLON RAPIDE > Large opening Maillon rapide

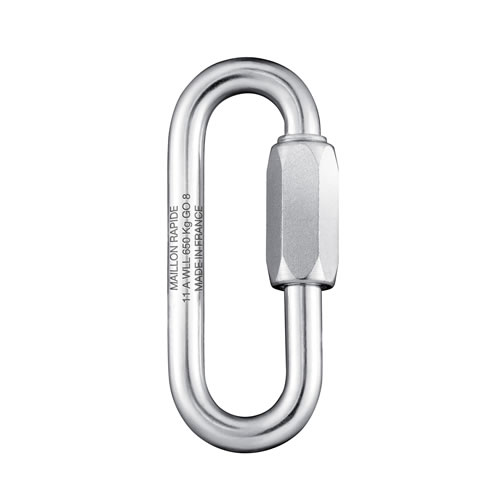

Large opening Maillon rapide

Large opening Maillon rapide

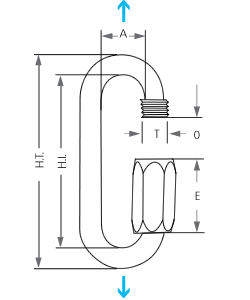

Direction of loading Scheme Large opening Maillon rapide
Material Tightening
torque Recommendation

Application

Product request

Quote:
for quote request, insert quantity in the chart below before clicking on the basket.

Large Opening: an alternative to the Standard shape with identical purpose, for easier connection of wider parts.

Reference Diameter Dimensions - mm Weight WLL BL Quote
mm inches H.T. H.I. A O E T g kg kg Qty
MRGOZ02.5 2.5 3/32" 33 28 7 7 12 3,5 4 30 150
MRGOZ03.0 3 7/64" 39,5 33,5 8,5 8,5 13,5 4 7 45 225
MRGOZ03.5 3.5 1/8" 46 39 10 10 16 5 10 90 450
MRGOZ04.0 4 5/32" 53 45 11,5 11,5 19 6 15 160 800
MRGOZ05.0 5 3/16" 62 52 13 13 22 7 25 250 1250
MRGOZ06.0 6 1/4" 70,5 58,5 14,5 14,5 25 9 41 350 1750
MRGOZ07.0 7 9/32" 79 65 16 16 28 10 60 500 2500
MRGOZ08.0 8 5/16" 88 72 17,5 17,5 31,5 11 91 650 3250
MRGOZ09.0 9 3/8" 95 77 19 19 33 12 118 800 4000
MRGOZ10.0 10 7/16" 105,5 85,5 20,5 20,5 36 13 157 1000 5000
MRGOZ12.0 12 1/2" 124 100 23,5 23,5 43 15 268 1250 6250
MRGOZ14.0 14 9/16" 142 114 26,5 26,5 49 17 420 2000 10000
MRGOZ16.0 16 5/8" 161 129 29,5 29,5 54 19 630 2500 12500
MRGOZ18.0 18 11/16" 176,5 140,5 32,5 32,5 62 22 879 3000 15000
MRGOZ20.0 20 25/32" 198,5 158,5 34,5 35,5 71 24 1220 3600 18000
Reference Diameter Dimensions - mm Weight WLL BL Quote
mm inches H.T. H.I. A O E T g kg kg Qty
MRGOI02.5 2.5 3/32" 33 28 7 7 12 3,5 4 90 450
MRGOI03.0 3 7/64" 39,5 33,5 8,5 8,5 13,5 4 7 145 725
MRGOI03.5 3.5 1/8" 46 39 10 10 16 5 11 200 1000
MRGOI04.0 4 5/32" 53 45 11,5 11,5 19 6 15 250 1250
MRGOI05.0 5 3/16" 62 52 13 13 22 7 26 400 2000
MRGOI06.0 6 1/4" 70,5 58,5 14,5 14,5 25 9 42 580 2900
MRGOI07.0 7 9/32" 79 65 16 16 28 10 62 800 4000
MRGOI08.0 8 5/16" 88 72 17,5 17,5 31,5 11 93 980 4900
MRGOI09.0 9 3/8" 95 77 19 19 33 12 121 1250 6250
MRGOI10.0 10 7/16" 105,5 85,5 20,5 20,5 36 13 161 1600 8000
MRGOI12.0 12 1/2" 124 100 23,5 23,5 43 15 275 2200 11000
MRGOI14.0 14 9/16" 142 114 26,5 26,5 49 17 431 3100 15500
MRGOI16.0 16 5/8" 161 129 29,5 29,5 54 19 646 4000 20000
Reference Diameter Dimensions - mm Weight WLL BL Quote
mm inches H.T. H.I. A O E T g kg kg Qty
MRGOZIC07.0 7 9/32" 79 65 16 16 28 10 22 200 1000
MRGOZIC10.0 10 7/16" 105,5 85,5 20,5 20,5 36 13 56 400 2000

*WLL: Working load limit
*BL: Breaking load.
