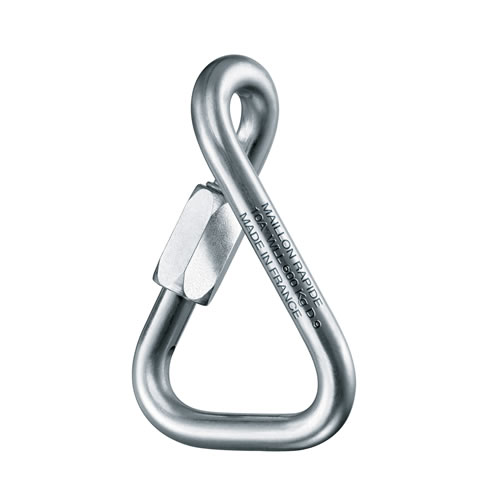

Delta Twist Maillon rapide

Delta Twist Maillon rapide

Direction of loading Scheme Delta Twist Maillon rapide

Scheme Delta Twist Maillon rapide

Application

Product request

Quote:
for quote request, insert quantity in the chart below before clicking on the basket.

Fitted with a 90° twist allowing smoother orientation of any part.

Zinc plated steel

Reference	Diameter		Dimensions - mm										Weight	WLL	BL	Quote
Reference	mm	inches	L.T.	L.I.1	L.I.2	H.T.	H.I.	A	O	E	R	T	g	kg	kg	Qty
MRDZ07.0 Twist	7	9/32'	52	22	38	76	62	15,5	8,5	21,5	8	10	68	320	1600
MRDZ09.0 Twist	9	3/8''	61	24	43	93	75	20	11	26	9,5	12	135	600	3000

*WLL: Working load limit
*BL: Breaking load.
