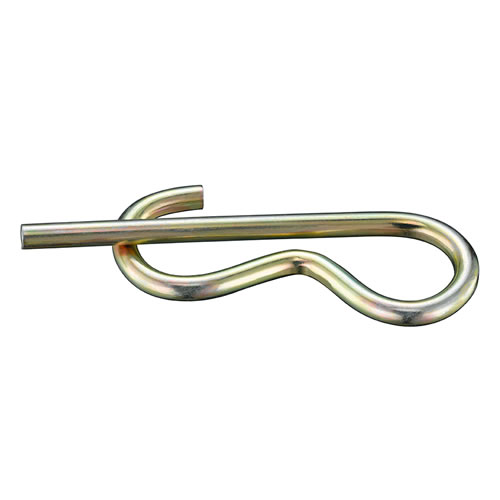

Safety Beta Pin

Safety Beta Pin

Scheme Safety Beta Pin

Application

Product request

Quote:
for quote request, insert quantity in the chart below before clicking on the basket.

Mechanical assembly of drilled parts for extensive use.

Bichromate or white zinc plated steel*

Reference	Diameter		Dimensions - mm			Weight	Quote
Reference	mm	inches	L	h	Ø axe	g	Qty
GBZB02.0 SECU	2	5/64"	36	15	5 to 8	2
GBZB03.0 SECU	3	7/64"	55	21	5 to 12	7
GBZB04.0 SECU	4	5/32"	72	28	8 to 16	16
GBZB05.0 SECU	5	3/16"	88	34	10 to 20	29
GBZB06.0 SECU	6	1/4"	104	36	12 to 22	49

* Bichromate zinc plated steel available while stocks last
